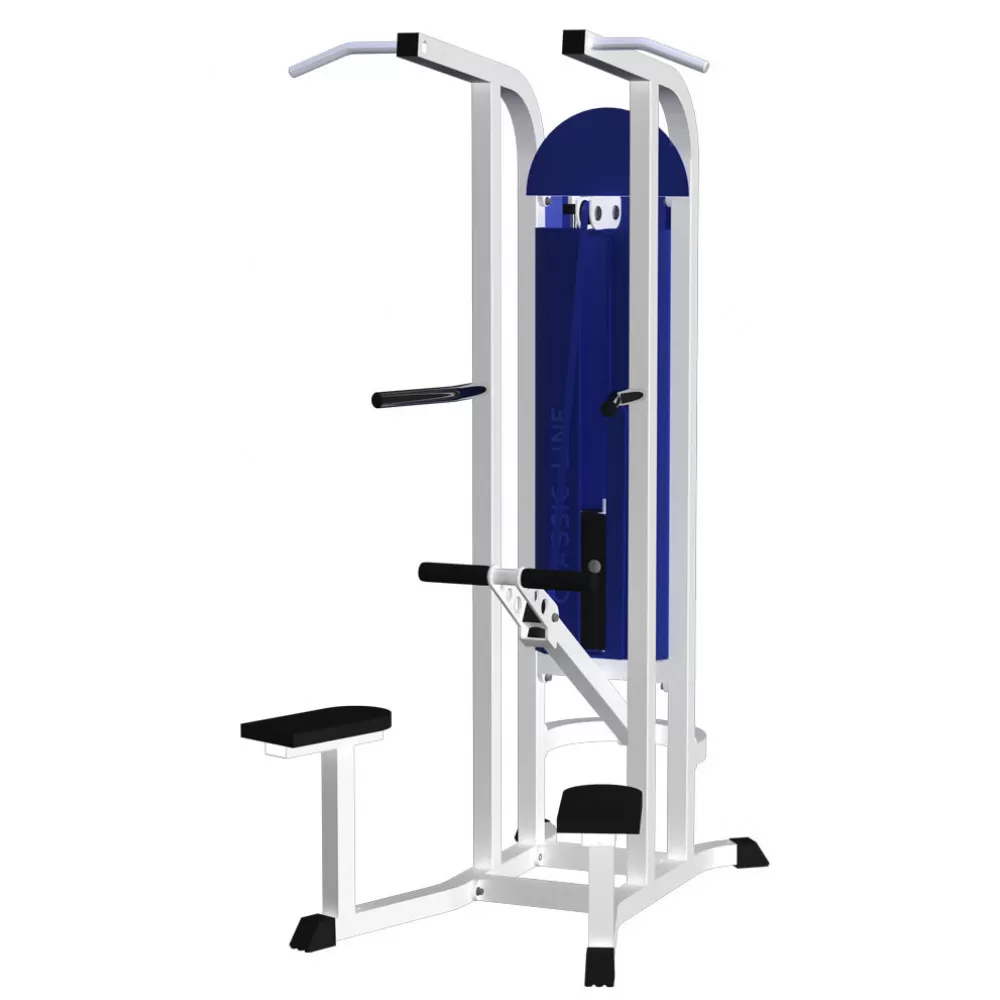

Horizontal bars with unloading (Gravitron) MB Barbell

• The supporting structure is made of profile 60x60 mm, wall thickness 2 mm.
• The design has radial bends, which significantly increases its strength.
• The frame is painted using powder coating.
• A weight block consisting of steel plates coated with PVC is used as a weighting material, which makes the work on the simulator silent.
• The load block is driven by a polyamide belt 20 mm wide, 2.6 mm thick, with a tensile strength of 390 N/mm2, with a maximum load of 1500 kg.
• The force is transmitted through just one roller block, which simplifies the design and increases the reliability of the mechanism.
• The load is adjusted by rearranging the adjusting pin (clamp) attached to the elastic cord.
• The flute, guides and knurled knobs are fully plated with nickel and chrome.
• The footrest is made of polyurethane.
• Ball bearings installed on all rotation units ensure reliable and comfortable use of the simulator.
• The steps are at different levels to allow use by athletes of any height.
• The steps are made of five-layer plywood 18 mm thick and covered with polyurethane foam.
• To prevent slipping, the product is equipped with PVC bearings.

Exercises:

1. Pull-ups with a wide and medium grip.

2. Push-ups.
