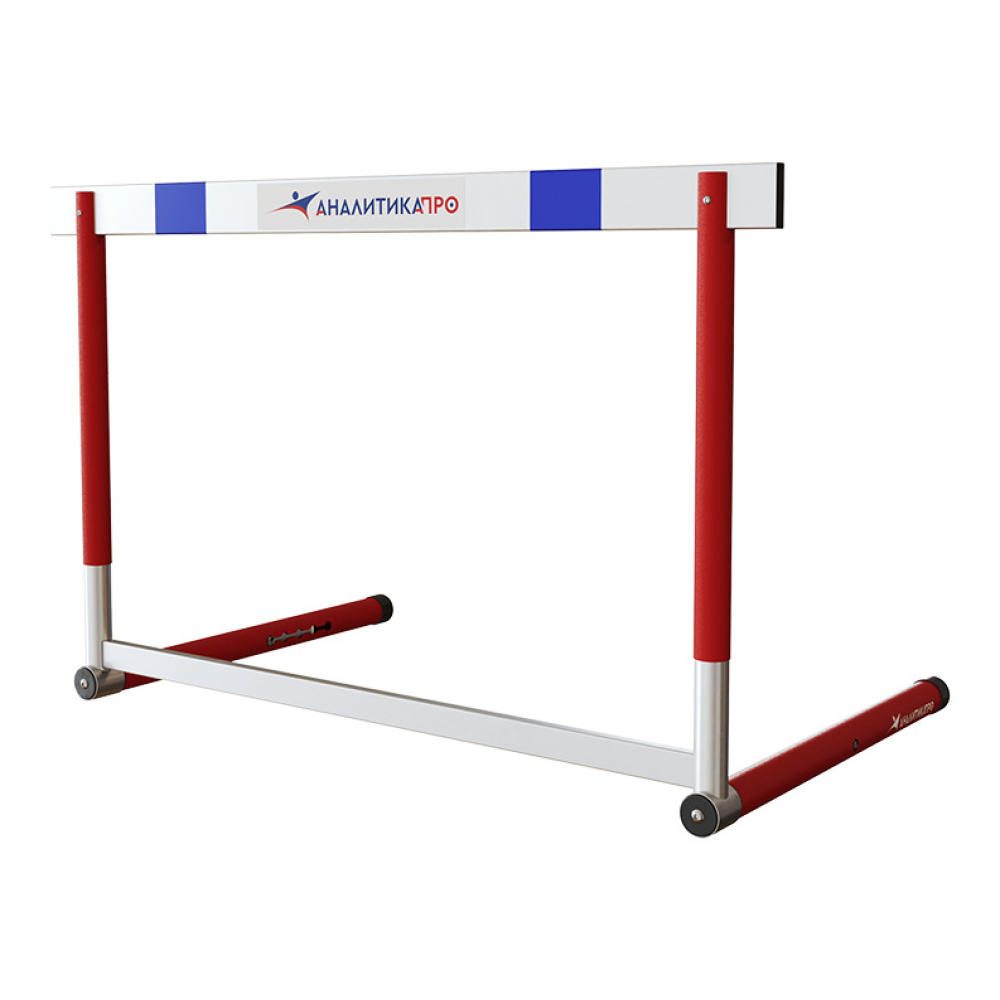

The hurdle is a piece of sports equipment used for training and competitions in athletics. To adjust the tipping force, the hurdle is equipped with an adjustable counterweight. The heights of the hurdle bar installation meet the requirements of the International Athletics Federation (IAAF). The metal frame of the hurdle is made of aluminum and galvanized steel, covered with a polymer coating to protect against precipitation or UV radiation. The hurdle bar is made of PVC profile. Height adjustment levels - 5 .
Bar installation height - 762 mm; 838 mm; 914 mm; 991 mm; 1067 mm.
Bar length - 1200 mm; bar width - 70 mm; barrier length - 691 mm.
Barrier width 1096 mm. The hurdle is a collapsible structure.
The hurdle consists of a frame, counterweights, telescopic posts, a bar and clamping screws. The barrier frame is a welded steel structure with a diameter of 38 mm, a wall thickness of 1.5 mm and a 40x20 mm profile with a wall thickness of 1.5 mm with supports made of aluminum pipes with a diameter of 42 mm and a wall thickness of 1.5 mm installed on it. The barrier frame has seats for counterweights and telescopic posts. The counterweights move along special grooves in the frame profile. The counterweight is fixed in the groove cell with a pressure screw. The telescopic posts are made of aluminum with a diameter of 42 mm and a wall thickness of 1.5 mm, have holes for fixing the bar at the desired height using push-button locks. The counterweights are made of a steel circle with a diameter of 42 mm and have a spring-loaded push-button lock. The bar is made of PVC profile 70x20 mm. Competition markings are made on the surface of the bar. The method of fixing the bar in the barrier is in the groove of the support post. All metal elements of the barrier are covered with powder paint. Open ends of pipes are closed with plastic plugs.
