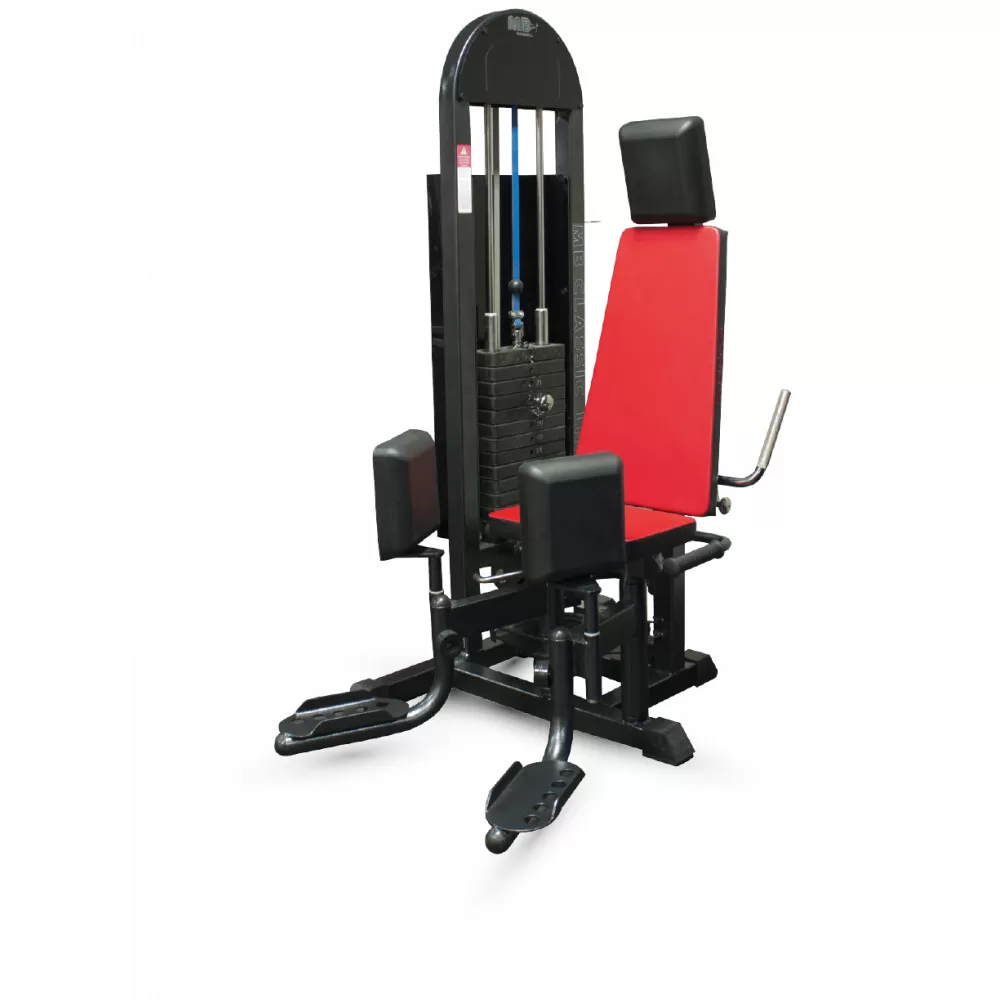

Reduction - leg spread MB Barbell

• The supporting structure is made of profile 60x60 mm, wall thickness 2 mm.
• The design has radial bends, which significantly increases its strength.
• The frame is painted using powder coating.
• A weight block consisting of steel plates coated with PVC is used as a weighting material, which makes the work on the simulator silent.
• The load block is driven by a polyamide belt 20 mm wide, 2.6 mm thick, with a tensile strength of 390 N/mm2, with a maximum load of 1500 kg.
• The force is transmitted through just 2 roller blocks, which simplifies the design and increases the reliability of the mechanism
• The load is adjusted by rearranging the adjusting pin (clamp) attached to the elastic cord.
• The bolt-on seat and backrest are made from 18mm thick five-ply plywood. Polyurethane foam and artificial leather are used as filling and upholstery.
• The flute and guides are fully plated with nickel and chrome.
• The load block protection is made of impact-resistant polystyrene.
• Ball bearings installed on all rotation units ensure reliable and comfortable use of the simulator.
• The headrest and thigh supports are made of five-layer 18mm plywood and covered with polyurethane foam for comfort.
• For the convenience of performing the exercise, the seat is adjustable according to the athlete’s height and has 5 fixed positions.
• The choice of exercise to be performed is determined by the rotation of the hip supports and the angle of extension, which is adjusted by a lever with a spring switch (10 positions)
• To prevent slipping, the product is equipped with PVC bearings.

Exercise: Reduction - leg extension.
