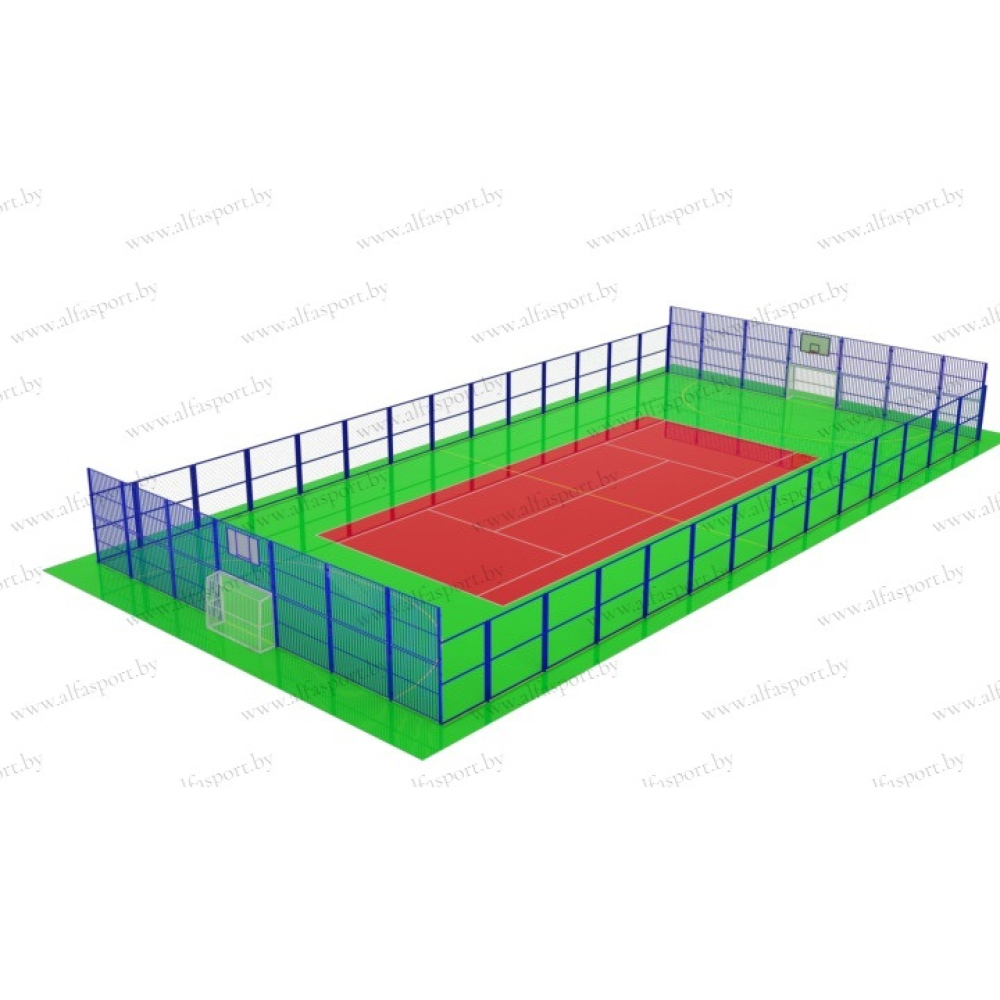

Fencing of the sports ground with built-in gates and basketball shields

The fence set is supplied as separate elements.

List of elements:

1. 2D welded panel 2.5×2.05 m Ø6/5/6 - 34 pcs.

2. 2D welded panel 2.5×2.05 m Ø8/6/8 - 8 pcs.

3. Fence post 60×40×2 - 27 pcs.

4. Fence post 80×80×2 - 8 pcs.

5. Right side gate rod (80×80×Pipe2)

6. Left side gate rod (80×80×Pipe2)

7. Vandal-proof gates

8. The upper crossbar of the vandal-proof gate

9. Vandal-proof section with basketball farm

10. Basketball training shield made of moisture-proof plywood (1.2 x 0.9 m) - 2 pcs.

11. Basketball ring - 2 pcs.

12. Various fasteners

Dimensions:

The length of the platform inside the fence (along the pillars) is 30 m;

The width of the platform inside the fence (along the pillars) is 15 m;

Height of the fence:

1. On the side of 30 m – 2.05 m;

2. On the side of 15 m:

2.1. In the central part (at a length of 13.2 m) – 4.1 m;

2.2. At the edges (0.9 m each) – 2.05 m.

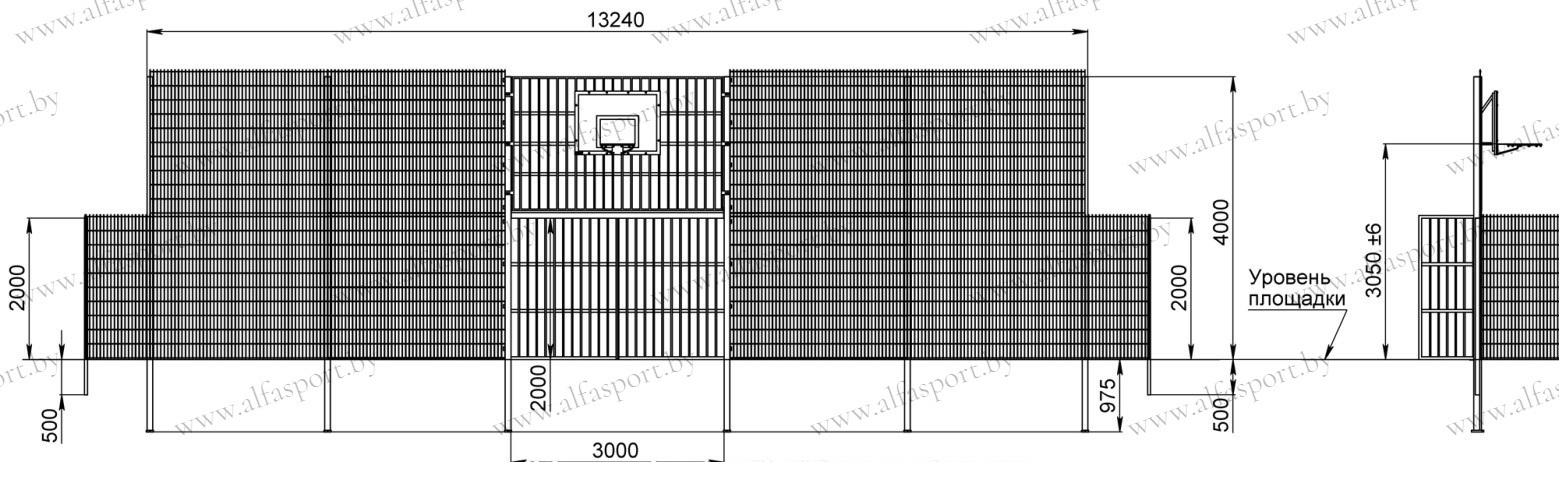

General view and dimensions of the fence on the side of 15 m:
