| Height1230 mm | Lenght60 m | Width30 m |
| Curvature radius7,5 m |
The assembled hockey board set is used as an outdoor sports ground with an internal size of 30x60 m and radii of curvature R - 7.5 m for competitions and training sessions in ice hockey and figure skating.

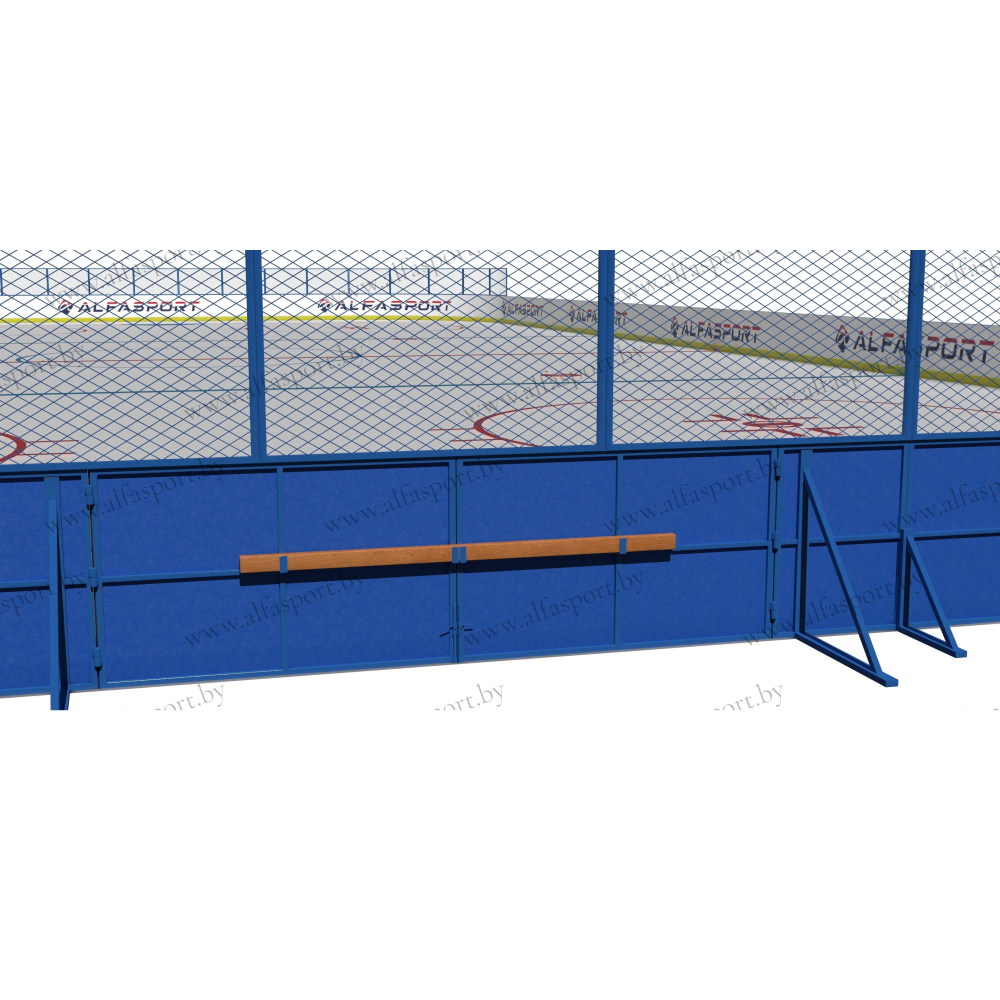

The kit includes a swing-type technological gate 3900 mm wide with a wooden locking bar, a gate with a semi-automatic locking mechanism for access to the playing field 900 mm wide, a protective fence made of galvanized chain-link mesh 1200 mm high behind the goal and on the curves of the hockey rink (see Fig. 2). The height of the side section is 1230 mm. The radius of curvature of the side is 7.5 m. The frame of the side section and the mounting support post are made of rectangular steel profile pipe. The frame is lined with an impact-resistant white fiberglass panel 5±0.5 mm thick with an integrated impact plate. The side sections are fastened to the base of the platform using support posts with jibs or anchor bolts.
The hockey board kit is supplied in the form of separate board sections and safety fencing sections.
| Height | 1230 mm |
|---|---|
| Lenght | 60 m |
| Width | 30 m |
| Curvature radius | 7,5 m |
|---|
Price on request
