The Speed-Lock S20 mobile sports parquet is a comprehensively advanced solution for portable sports fields. In the field of sports, there is a constant need to develop universal and user-friendly solutions for creating sports grounds. From conducting professional competitions to organizing training sessions and exhibitions, a system is required that will be easy to assemble, ensure high quality coverage and meet safety standards. In response to these requirements, the Speed-Lock S20 mobile sports parquet has been developed, which combines innovative technologies and functional features.
Speed-Lock S20 mobile sports parquet is a unique seamless parquet layer with a durable lacquer coating. The surface provides maximum wear resistance and makes the Speed-Lock S20 a premium sports floor that meets the highest requirements. The high-strength sports coating fits quickly and is easy to clean.
S20 Speed-Lock Technology: Patented Connection System: One of the key features of the Speed-Lock S20 mobile sports parquet is its patented connection system. This innovative technology makes it easy and reliable to connect modular parquet slabs, providing a durable and stable coating. Thanks to this system, the installation and dismantling of parquet becomes a fast and efficient process that does not require specialized tools.

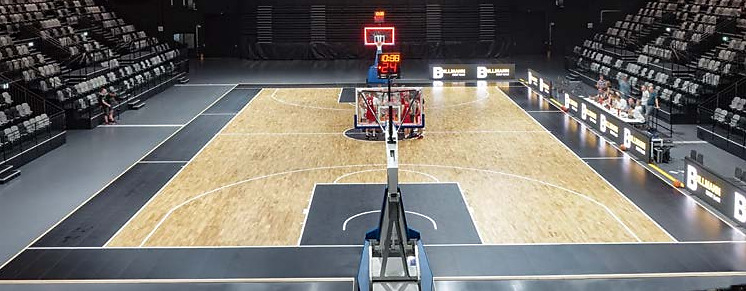

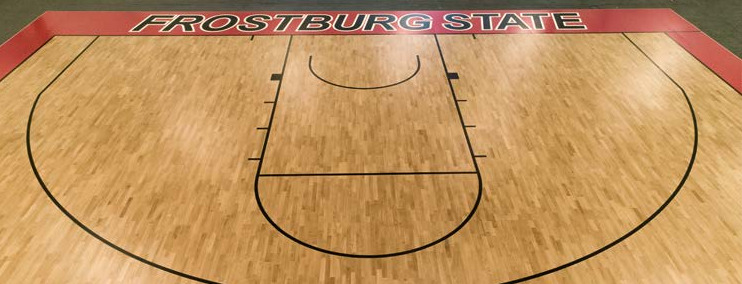

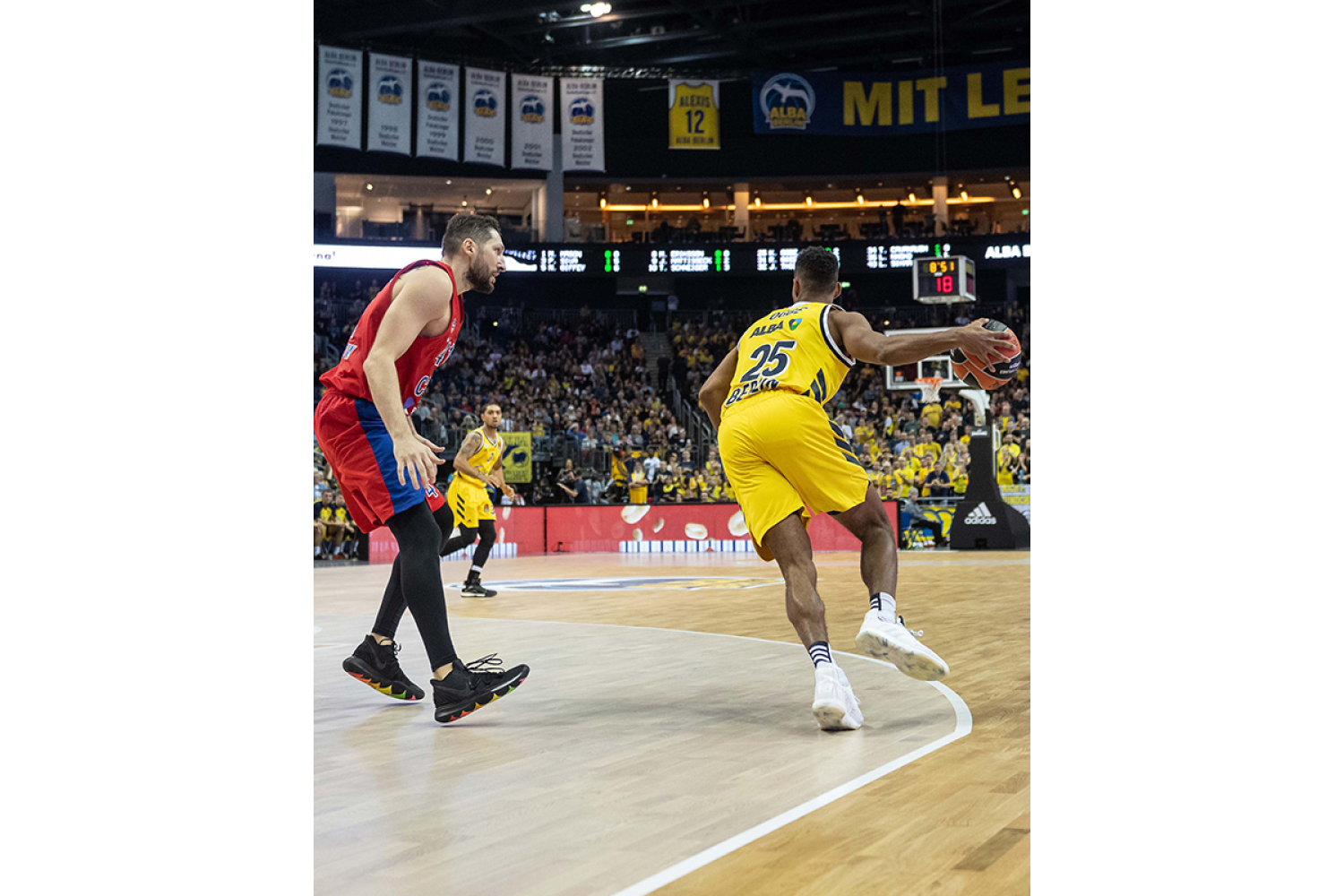

It is designed for holding competitions of the highest level in basketball of 1, 2, and 3 levels (European Cups, World Championships, Olympic Games), mini-football. The unique bonding of the elements eliminates their movement relative to each other and ensures the absolute evenness of the playing surface. The reliable fixed edge does not require special fitting.
FIBA Approval for Basketball: The Speed-Lock S20 has been approved by the International Basketball Federation (FIBA), which confirms its compliance with quality and safety standards for basketball competitions. This makes the parquet an ideal choice for organizing both professional and amateur basketball events.

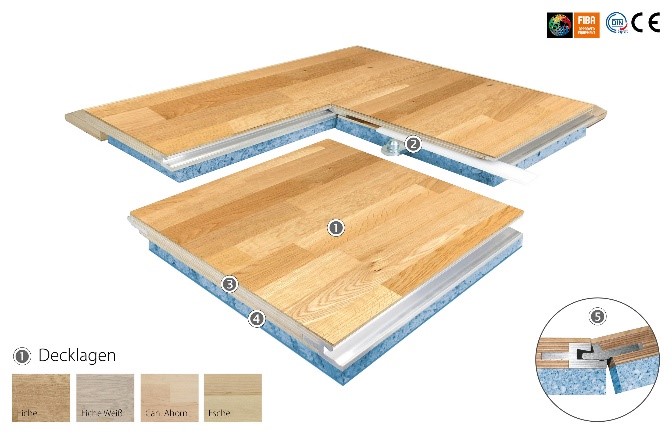

Description:
- top layer, 3.6mm, parquet, factory surface treatment, high wear resistance
- middle layer, 15 mm, birch plywood
- bottom layer, 18 mm, laminated composite foam
- Wood species options for the upper layer are oak, ash, and hard maple.
- Patented aluminum panel connection system. Patented end edge fastening system.
- Dimensions and weight of the elements 2470 x 613mm (1.51 m2 per module)
- The total thickness is about 37 mm
- The weight of the panel is about 24 kg, about 16 kg/m2
Easy to maintain. Another advantage of the Speed-Lock S20 is its ease of maintenance. Parquet does not require complex maintenance and regular maintenance. The durable lacquer coating protects it from abrasion and moisture, which ensures a long service life and maintains an attractive appearance.
No need for surface preparation. The installation of the Speed-Lock S20 does not require special surface preparation. Parquet can be installed on various types of smooth and clean substrates, including concrete, asphalt, existing acrylic or polyurethane coating. This significantly reduces the time and cost of preparatory work, making it an ideal choice for temporary sports grounds.
Built-in shock-absorbing layer. One of the important design elements of the Speed-Lock S20 is the built-in shock-absorbing layer. This layer provides additional shock protection and improves cushioning, which makes the coating safer for athletes and prevents injury during the games.
Durable lacquer coating. The Speed-Lock S20 parquet has a durable lacquer coating that protects it from scratches, abrasion and moisture. This ensures durability and preservation of the coating quality over a long period of operation
Conclusion
The Speed-Lock S20 mobile sports parquet is a comprehensively advanced solution for creating portable sports fields. The combination of innovative technologies, ease of use, safety, ease of maintenance and high quality makes it an ideal choice for organizing sports events of any level. The implementation of this solution contributes to the development of sports infrastructure and the creation of comfortable conditions for sports, which has a beneficial effect on the health and activity of the population.

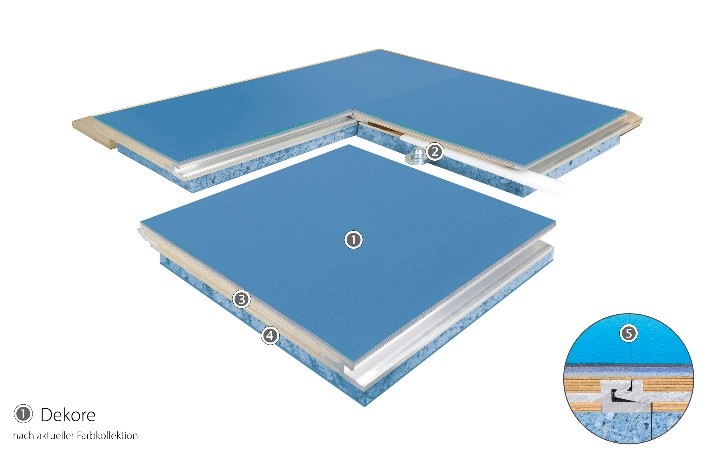

The Speed-Lock M1 mobile sports coating is a combined elastic sports coating system that eliminates the need for complex construction of rolled materials and their fixation with adhesive tape. Thanks to the maximum ease of assembly, you can turn any arena into a playground for professional indoor sports in just a few hours.

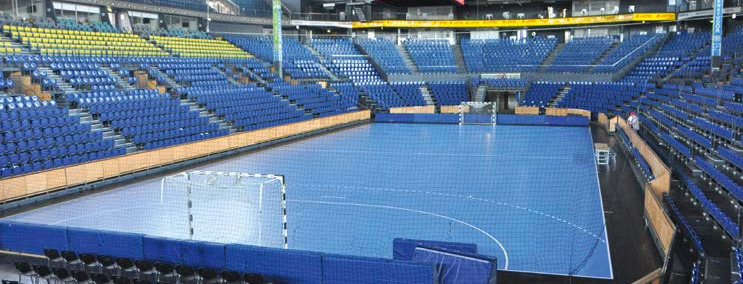

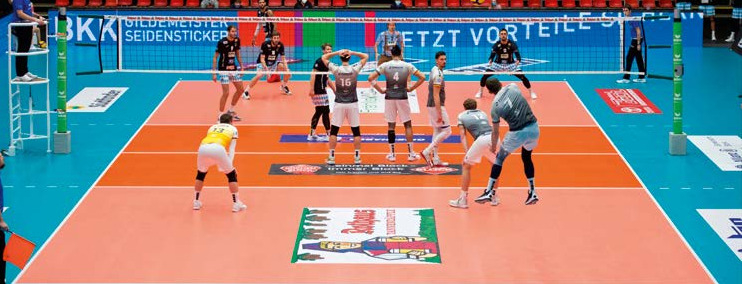

Designed for volleyball, handball and mini-football competitions. The durability of the system is ensured by a reliable and durable patented connection system Speed-lock.
Description
- Top layer, 7.5mm, vinyl, high wear resistance
- middle layer, 18 mm, birch plywood
- bottom layer, 18 mm, laminated composite foam
- Patented aluminum panel connection system.
- Patented end edge fastening system.
- Dimensions and weight of the elements 2470 x 613mm (1.51 m2 per module)
- The total thickness is about 43 mm
- Panel weight – about 30 kg, about 20 kg/m2

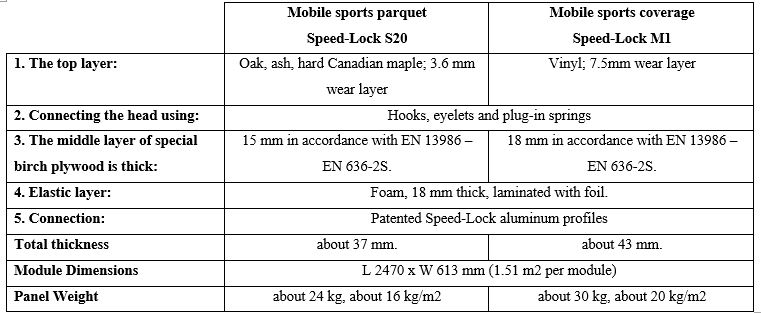

Differences between Speed-Lock S20 Mobile Sports parquet and Speed-Lock M1 mobile sports flooring:

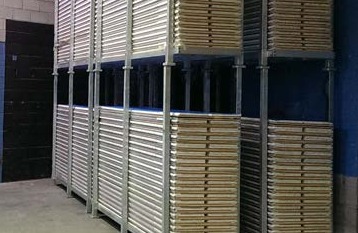

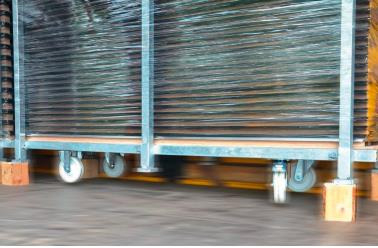

Storage and movement system Allows you to move floor elements independently or with the help of a forklift. Vertical stacking is possible.
Maintenance and care: The surfaces of all floors are subject to natural wear and tear depending on use. For this reason, regular cleaning and maintenance are necessary to maintain the product in its original condition. Due to its design, the "Speed-Lock" must be cleaned with a minimum amount of water.
Caution: Too much water can cause the wood to swell.
Assembly instructions

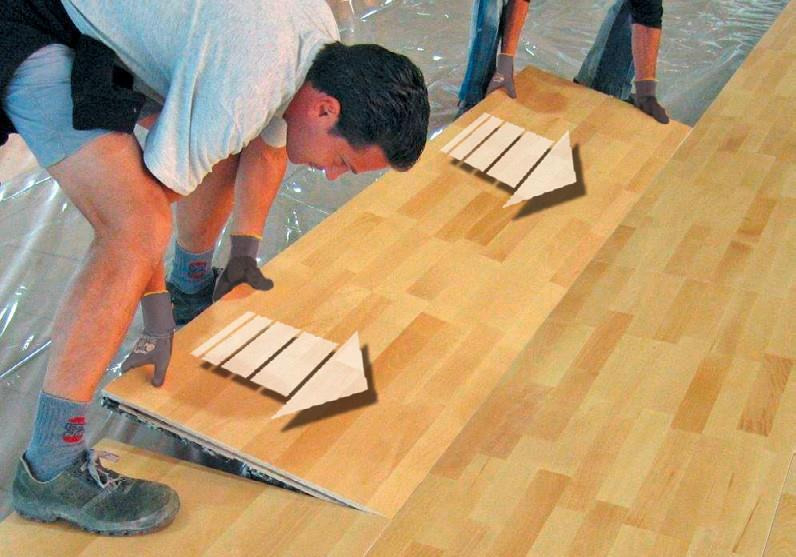

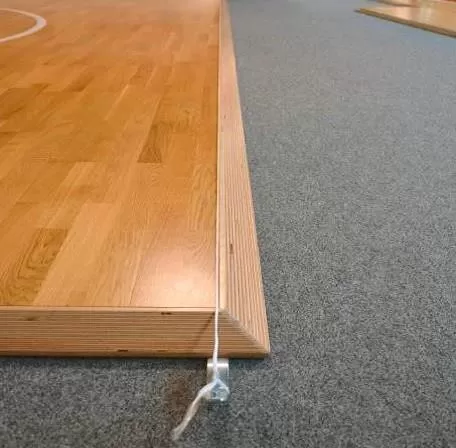

1. Preparation When laying the first row, it is necessary to use a guide (for example, a string or a drawn line or a laser measuring device) to prevent curvature (banana or sickle effect) during subsequent laying. Each panel must be installed by two workers at the same time to prevent damage during processing.
Attention:
- Be careful not to bend or damage the aluminum profiles when lifting the panel.
- When the panels are aligned, the optimal installation angle is about 30°
- Always place the panels with the foam side down. Do not put them on the side or the front side.
- When aligning the following panels, make sure that the panel is straight (and at an angle of no more than 30°), then carefully slide it into the groove. Then lower the panel to the ground manually. If the panel does not fully touch the surface under it, never press it with excessive force. Carefully pull the panel out of the slot and align it again.

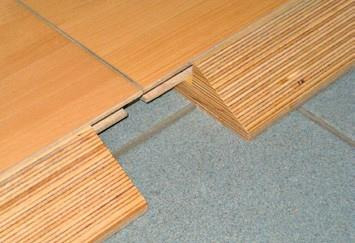

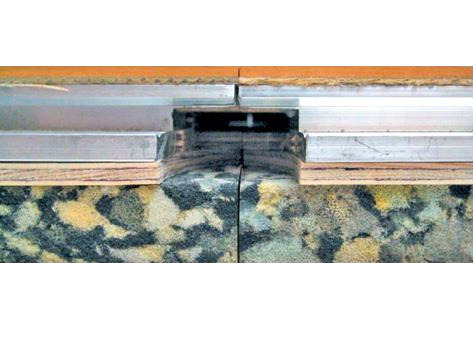

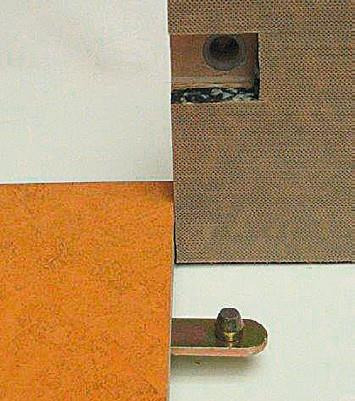

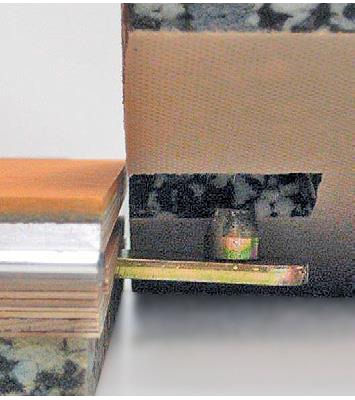

2. Closing the head joint

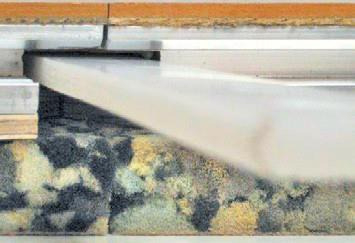

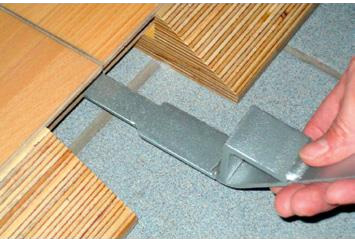

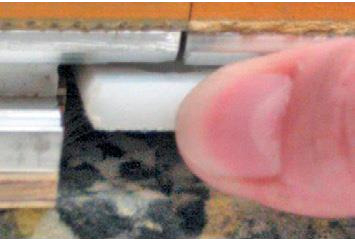

3. Closing the tongue joint
- The tongue joint ensures the evenness of the head joint.
- The tongue joint must be inserted into the milling groove between the head joint.
Attention:

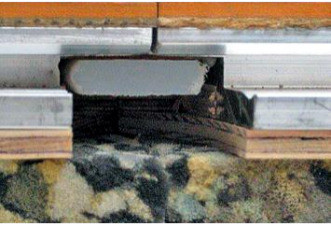

- Be careful to slide the tab completely behind the aluminum profile.
- Do not press the tongue into the foam layer.

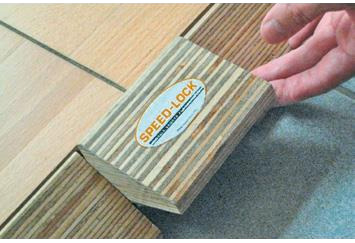

4. Installing the last row Since the panels in the last row are also butt-connected, these panels have gaps on the side. These gaps are then closed by the edges after the tabs are installed.
